2002 TL Specifications

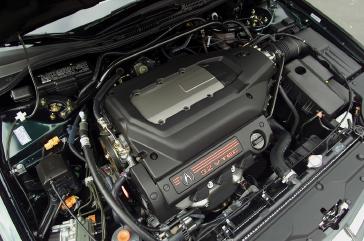

POWERTRAIN
| 3.2 TL | 3.2 TL TYPE- S | |
|
Engine Type
|
3.2-litre, SOHC VTEC V-6 | 3.2-litre, SOHC VTEC V-6 |
|
Horsepower, SAE Net
|
225 hp @ 5600 rpm | 260 hp @ 6100 rpm |
|
Torque, SAE Net
|
216 lb.-ft. @ 4700 rpm | 232 lb.-ft. @ 3500-5500 rpm |
|
Redline
|
6300 rpm | 6900 rpm |
|
Bore & Stroke
|
89 mm x 86 mm (3.50 in x 3.39 in) | 89 mm x 86 mm (3.50 in x 3.50 in) |
|
Displacement
|
3210 cc (196 cu in) | 3210 cc (196 cu in) |
|
Compression Ratio
|
9.8:1 | 10.5:1 |
|
Induction System
|
Programmed Fuel Injection (PGM-FI) | Programmed Fuel Injection (PGM-FI) |
|
Valvetrain
|
Variable Valve Timing and Lift Electronic Control (VTECÆË), 4 valves per cylinder, belt-driven, single overhead camshaft | Variable Valve Timing and Lift Electronic Control (VTECÆË), 4 valves per cylinder, belt-driven, single overhead camshaft |
|
Engine Block
|
Aluminum alloy | Aluminum alloy with spin-cast cylinder liners |
|
Cylinder Head
|
Aluminum alloy | Aluminum alloy |
|
Emission Control
|
Electronically controlled EGR | Electronically controlled EGR |
|
Ignition System
|
Direct ignition system with knock control system | Direct ignition system with knock control system |
|
Alternator
|
105 amp. max | 120 amp. max |
|
Battery
|
12V, maintenance free | 12V, maintenance free |
|
Recommended Fuel
|
Premium Unleaded, 91 Octane | Premium Unleaded, 91 Octane |
|
Layout
|
Transverse mounted, front engine, front-wheel-drive | Transverse mounted, front engine, front-wheel-drive |
|
Transmission
|
5-speed automatic transmission with sequential SportShift and Grade Logic Control | |
| Ratios (:1) 1st | 2.563 | |
| 2nd | 1.551 | |
| 3rd | 1.021 | |
| 4th | 0.653 | |
| 5th | 0.47 | |
| Reverse | 1.846 | |
| Final | 4.428 |
CHASSIS
| 3.2 TL | 3.2 TL TYPE- S | |
|
Body type
|
All- steel unit body | All- steel unit body |
|
Front Suspensions
|
Independent double-wishbone with coil springs and stabilizer bar | Independent double-wishbone with coil springs and stabilizer bar |
|
Rear Suspension
|
Independent multi-link, double-wishbone with coil springs and stabilizer bar | Independent multi-link, double-wishbone with coil springs and stabilizer bar |
|
Shock Absorbers
|
Gas-pressurized with Acrua Progessive Valve technology, front and rear | Gas-pressurized with Acrua Progessive Valve technology, front and rear |
|
Stabilizer Bars
|
Front: 27.4 mm (1.07 in.) diameter x 4.5mm (0.18 in.) wall thickness | Front: 27.4 mm (1.07 in.) diameter x 4.5mm (0.18 in.) wall thickness |
|
Steering Type
|
Rear: 18.0 mm diameter, soild (0.71 in.) | 19.0 mm diameter, soild (0.75 in.) |
|
Steering Ratio
|
Speed-semsitive, variable power assisted, rack and pinion | Torque-sensing, variable power assisted rack and pinion |
|
Sterring Wheel Turns (lock to lock)
|
16.1:1 | 16.4:1 |
|
Turning Circle (curb to curb)
|
3.11 | 2.93 |
|
Wheels
|
11.2m (36.8 ft) | 12.0m (39.7 ft.) |
|
Tires
|
16x 6.5 JJ cast -aluminum alloy | 17 x 6.5 JJ cast aluminum alloy |
|
Braking System
|
P205/60R16 91V | P215/50R17 93V |
|
Front Discs
|
Dual-diagonal, power-assisted, 4-wheel disc brakes with ABS | Dual-diagonal, power-assisted, 4-wheel disc brakes with ABS |
|
Rear Discs
|
Ventilated, 300 mm (11.8 in) diameter, 9 mm (0.35 in) rotor thickness | Ventilated, 300 mm (11.8 in) diameter, 9 mm (0.35 in) rotor thickness |
|
Total Swept Area
|
Front: 1564 cm2 (242.4 sq in) Rear: 1096 cm2 (169.9 sq in) | |
|
Anti-lock braking system (ABS)
|
3-channel system with 4 wheel speed sensors and electric/hydraulic control | 4-channel system with 4 wheel speed sensors and electric/hydraulic control |
|
Vehicle Stability Assist (VSA)
|
Not Available | Throttle control and brake control utilizing yaw, lateral g, speed and steering sensors for traction control and stability enhancement |
CAPACITIES
| 3.2 TL | 3.2 TL TYPE- S | |
|
Crankcase
|
4.4 L (4.6 US qt) | 4.4 L (4.6 US qt) |
|
Cooling System
|
7.4 L (7.8 US qt) | 7.4 L (7.8 US qt) |
|
Fuel Tank
|
65.0 L (17.2 US gal) | 65.0 L (17.2 US gal) |
|
Volumes
|
||
|
Passenger Cargo Total
|
2733 L (96.5 cu ft) 405 L (14.3 cu ft) 3138 L (110.8 cu ft) | 2734 L (96.5 cu ft) 405 L (14.3 cu ft) 3138 L (110.8 cu ft) |
EXTERIOR DIMENSIONS
| 3.2 TL | 3.2 TL TYPE-S | |
|
Wheelbase
|
2745 mm (108.1 in) | 2746 mm (108.1 in) |
|
Track, front
|
1553 mm (61.1 in) | 1554 mm (61.1 in) |
|
Track, rear
|
1535 mm (60.4 in) | 1536 mm (60.4 in) |
|
Overall Length
|
4889 mm (192.5 in) | 4890 mm (192.5 in) |
|
Overall Width
|
1795 mm (70.6 in) | 1796 mm (70.6 in) |
|
Overall Height
|
1365 mm (53.7 in) | 1366 mm (53.7 in) |
|
Minimum Ground Clearance
|
158.7 mm (6.2 in) Non-Load | 135.6 mm (5.3 in) Full-Load |
|
Curb Weight
|
1584 kg (3485 lbs) | 1614 kg (3551 lbs) |
|
Weight Distribution (% front/ rear)
|
62 / 38 |

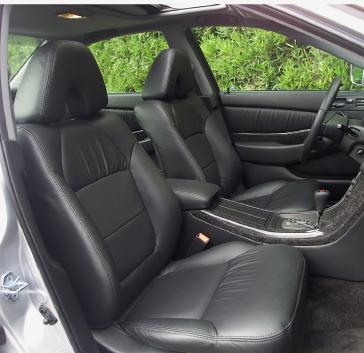

INTERIOR DIMENSIONS
| 3.2 TL | 3.2 TL TYPE-S | |
|
Front Room- Head
|
38.2 in (970 mm) | 38.2 in (970 mm) |
|
Room- Leg
|
42.4 in (1078 mm) | 42.4 in (1078 mm) |
|
Room-Hip
|
53.3 in (1354 mm) | 53.3 in (1354 mm) |
|
Room- Shoulder
|
56.2 in (1427 mm) | 56.2 in (1427 mm) |
|
Rear Room- Head
|
36.5 in (928 mm) | 36.5 in (928 mm) |
|
Room- Leg
|
35.0 in (889 mm) | 35.0 in (889 mm) |
|
Room- Hip
|
53.3 in (1354 mm) | 53.3 in (1354 mm) |
|
Room- Shoulder
|
55.7 in (1414 mm) | 55.7 in (1414 mm) |
